# NPV - Fixing Eye Clipping in NPVs

**Created:** August 11, 2025 by [saltypigloaf](mailto:undefined)\
**Last documented update:** January 10, 2026

***

### **Overview**

In vanilla *Cyberpunk 2077*, V’s face only ever uses **Rig 000 and it's associated bone structure**, no matter what facial sliders you pick in Character Creation. This is a **known bug** and it causes serious visual problems.

> ❗ **Why it matters:**
>
> * There are **22 female /** **21 man** facial rigs in the game.
> * Each rig corresponds to a set of morph slider values: for example, Rig 000 = “all sliders at 1,” Rig 001 = “all sliders at 2,” etc.
> * These rigs exist so that every facial feature aligns correctly to your custom CC choices.
> * Using the wrong rig leads to *eyeballs clipping through eyelids or cheeks* when looking sideways in Photo Mode.
> * For V, this can be corrected using mods like [Facial Customisation\[sic\] Rig Fix](https://www.nexusmods.com/cyberpunk2077/mods/7179) & [Facial Customization Fix - ArchiveXL](https://www.nexusmods.com/cyberpunk2077/mods/22849) but does not apply to NPVs.

***

### **Before You Start**

This guide assumes you have already followed this guide: [NPV: Preparing the head in Blender](/cyberpunk-2077-modding/modding-guides/npcs/npv-v-as-custom-npc/npv-preparing-the-head-in-blender.md)

***

## **Fixing the bones with a script**

The same way we apply character creator morph targets to meshes with a script in blender, we need to get the correct bones for our rig.

In your NPV **WolvenKit** project:

* Find your NPV's **head folder**. <mark style="color:$info;">(that contains all the head meshes)</mark>

> - *(the folder should have files like:* `h0_000_pwa_c__basehead.mesh`, `he_000_pwa_c__basehead.mesh`, `heb_000_pwa_c__basehead.mesh`, *or* `h0_000_pma_c__basehead.mesh`, `he_000_pma_c__basehead.mesh`, `hx_000_pma_c__basehead_cyberware_01.mesh`, *etc...)*
> - Make sure you didn't rename these files.

* We are going to **re-import** these meshes later, so **export** them if you don't have them exported already.
* Go to: **Tools** > **Script Manager** and add a new script:

<figure><img src="/files/nFXXfG63XkFjLDz1Fe1H" alt=""><figcaption></figcaption></figure>

* **Copy** this script into the editor, you just opened:

{% code expandable="true" %}

```javascript
import * as Logger from 'Logger.wscript';
import * as TypeHelper from 'TypeHelper.wscript';



/* = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = */

// ↓ YOUR NPV'S FOLDER, THAT CONTAINS HEAD MESHES
var npv_head = "tutorial\\npv\\your__character\\head\\"

// ↓ YOUR NPV'S CHARACTER CREATOR PARAMETERS
const cc_params_input = {
	eyes:  '22', // 01 = first appearance in character creator
	nose:  '22',
	mouth: '22',
	jaw:   '22',
	ears:  '22',
};

/* = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = */



function main() {

if (!npv_head.endsWith('\\')) npv_head = npv_head + '\\';

const cc_params_int = { // convert character creator string nubmers to integer indexes
	eyes:  parseInt( cc_params_input.eyes  ) - 1,
	nose:  parseInt( cc_params_input.nose  ) - 1,
	mouth: parseInt( cc_params_input.mouth ) - 1,
	jaw:   parseInt( cc_params_input.jaw   ) - 1,
	ears:  parseInt( cc_params_input.ears  ) - 1,
};

const cc_path = "base\\characters\\head\\player_base_heads\\";

function shorten_cc_path(filepath) {return filepath.startsWith(cc_path) ? '...\\'+filepath.slice(cc_path.length) : filepath; } // for logs

const cc_pwa_path = cc_path + "player_female_average\\";
const cc_pma_path = cc_path + "player_man_average\\";

const cc_pwa_folders = [
"h0_000_pwa_c__basehead\\",
"h0_001_pwa_b__middle_043\\",
"h0_002_pwa_a__young_096\\",
"h0_003_pwa_c__middle_701\\",
"h0_004_pwa_c__young_731\\",
"h0_005_pwa_c__young_703\\",
"h0_006_pwa_c__young_752\\",
"h0_007_pwa_c__middle_747\\",
"h0_008_pwa_c__middle_712\\",
"h0_009_pwa_a__young_041\\",
"h0_010_pwa_b__young_076\\",
"h0_011_pwa_c__young_714\\",
"h0_012_pwa_c__middle_738\\",
"h0_013_pwa_c__middle_721\\",
"h0_014_pwa_c__middle_777\\",
"h0_015_pwa_c__middle_707\\",
"h0_016_pwa_c__middle_720\\",
"h0_017_pwa_a__middle\\",
"h0_018_pwa_a__middle\\",
"h0_019_pwa_b__middle\\",
"h0_020_pwa_b__middle\\",
"h0_021_pwa_c__young_demovicky\\"
];

const cc_pma_folders = [
"h0_000_pma_c__basehead\\",
"h0_001_pma_a__middle_724\\",
"h0_002_pma_b__middle_047\\",
"h0_003_pma_c__middle_768\\",
"h0_004_pma_a__middle_749\\",
"h0_005_pma_a__middle_742\\",
"h0_006_pma_a__middle_740\\",
"h0_007_pma_c__middle_704\\",
"h0_008_pma_c__middle_783\\",
"h0_009_pma_c__young_727\\",
"h0_010_pma_c__middle_758\\",
"h0_011_pma_c__middle_763\\",
"h0_012_pma_c__middle_723\\",
"h0_013_pma_b__older_046\\",
"h0_014_pma_c__middle_776\\",
"h0_015_pma_b__middle_049\\",
"h0_016_pma_b__young_002\\",
"h0_017_pma_a__middle\\",
"h0_018_pma_a__middle\\",
"h0_019_pma_b__middle\\",
"h0_020_pma_b__middle\\"
];

const cc_bodies = [
{ code: "_pwa_", path: cc_pwa_path, folders: cc_pwa_folders },
{ code: "_pma_", path: cc_pma_path, folders: cc_pma_folders }
];



const PROJ_FILES = [...wkit.GetProjectFiles('archive')];

Logger.Info('loading game files...');

const GAME_FILES = [...wkit.GetArchiveFiles()].map(f => f.Name);
// const GAME_FILES = PROJ_FILES; //DEBUG

const output_subfolder = "#script_output\\"; // set to "" to override original files



// basically detects whether the input filename includes "_pwa_" or "_pma_"
function detect_cc_body(filename) {

	let cc_body;

	for (let b of cc_bodies) {
		if (filename.includes(b.code)) {
			cc_body = b;
			break;
		}
	}

	if (!cc_body) {
		let allcodes = cc_bodies.map(b => b.code).join(' or ');
		Logger.Error(filename + '  <<  file name includes no ' + allcodes);
		return null;
	}

	return cc_body;
}

// finds a matching mesh based on input file name and a character creator parameter.
// returns a file with the same prefix if there is only one (like 'h0_' / 'he_' / 'heb_' ..)
// else returns a file with the same postfix (get_mesh_type())
function get_cc_match(filename, cc_index) {

	let cc_body = detect_cc_body(filename); if (!cc_body) { return null; }

	let cc_folder_name = cc_body.folders[cc_index];

	let files = GAME_FILES
	.filter((f) => f.startsWith( cc_body.path + cc_folder_name ))
	.filter((f) => f.endsWith('.mesh'))
	.filter((f) => /[^\\]*$/.exec(f)[0].split('_')[0] === filename.split('_')[0])

	if (files.length == 1) {
		return files[0];
	}

	let identity = cc_folder_name.split(cc_body.code)[1].slice(0, -1); // 'c__basehead' / 'c__middle_747' / 'c__young_714'

	const get_mesh_type = (f, identity) => {
		return f.slice(f.lastIndexOf(identity) + identity.length); // '_cyberware_01.mesh' / '_personal_slot_dec.mesh' / '_earring_01.mesh' ..
	};

	files = files.filter((f) => filename.endsWith( get_mesh_type(f, identity) ));

	if (files.length > 1) {
		Logger.Warning("get_cc_match() matched files len > 1");
		Logger.Warning("returning first one:");
		Logger.Warning(files);
	}
	else if (files.length < 1) { return null; } // no match found

	return files[0];

}

function construct_mesh(filepath) {

	let json = TypeHelper.JsonParse(wkit.GameFileToJson(wkit.GetFileFromProject(filepath, OpenAs.GameFile)));

	let current_npv_mesh_name = /[^\\]*$/.exec(filepath)[0]; // 'h0_000_pwa_c__basehead.mesh'

	Logger.Info('constructing: ' + current_npv_mesh_name);

	let done_anything = false;

	const transfer = (cc_param, cc_type) => {

		let cc_match_filepath = get_cc_match( current_npv_mesh_name, cc_param );

		if (!cc_match_filepath) { Logger.Warning('couldnt find a matching donor file... (' + cc_type + ')'); return false; }

		Logger.Debug('transfering bones from:  [' + shorten_cc_path(cc_match_filepath) + ']  with "' + cc_type + '" in the name');

		let cc_json = TypeHelper.JsonParse(wkit.GameFileToJson(wkit.GetFile(cc_match_filepath, OpenAs.GameFile)));
		// let cc_json = OPEN_GAME_FILE(cc_match_filepath);

		for ( const [cc_index, b] of cc_json["Data"]["RootChunk"]["boneNames"].entries() ) {

			let s = b.value;

			if (!s.includes(cc_type)) continue;

			let i = json["Data"]["RootChunk"]["boneNames"].findIndex(b => b.value === s);

			if (i == -1) continue;

			json["Data"]["RootChunk"]["boneRigMatrices"][i] =                                       cc_json["Data"]["RootChunk"]["boneRigMatrices"][cc_index];
			json["Data"]["RootChunk"]["boneVertexEpsilons"][i] =                                    cc_json["Data"]["RootChunk"]["boneVertexEpsilons"][cc_index];
			json["Data"]["RootChunk"]["renderResourceBlob"]["Data"]["header"]["bonePositions"][i] = cc_json["Data"]["RootChunk"]["renderResourceBlob"]["Data"]["header"]["bonePositions"][cc_index];

			//Logger.Success(i);
			//Logger.Success(s);

		}

		done_anything = true; return true;

	};

	transfer(cc_params_int.jaw  , "_jaw_" );
	transfer(cc_params_int.ears , "_ear_" );
	transfer(cc_params_int.nose , "_nose_");
	transfer(cc_params_int.mouth, "_mug_" );
	transfer(cc_params_int.eyes , "_eye_" );

	if (done_anything) {

		let outpath = npv_head + output_subfolder + current_npv_mesh_name;

		Logger.Success('saving to: ' + outpath);
		wkit.SaveToProject( outpath, wkit.JsonToCR2W(TypeHelper.JsonStringify(json)) );

	}
	else {

		Logger.Warning('done nothing, skipping ' + current_npv_mesh_name + '...'); return;

	}

}





function get_cc_match_rig(cc_body, cc_index) {

	let cc_donor_dir = cc_body.path + cc_body.folders[cc_index];

	let files = GAME_FILES.filter(f => f.startsWith(cc_donor_dir) && f.endsWith('_skeleton.rig'));

	files = files.filter((item, index) => { return files.indexOf(item) === index; }); // deduplicate

	if (files.length > 1) { Logger.Warning('multiple rigs found in: ' + cc_donor_dir + '. Picking first one...'); Logger.Debug(files); }
	else if (files.length < 1) { Logger.Error('_skeleton.rig not found in: ' + cc_donor_dir); return null; }

	return files[0];

}

function construct_rig(cc_body) {

	Logger.Info('constructing a rig for ' + cc_body.code);

	let base_rig_filepath = get_cc_match_rig(cc_body, cc_params_int.eyes);

	let json = TypeHelper.JsonParse(wkit.GameFileToJson(wkit.GetFile(base_rig_filepath, OpenAs.GameFile)));

	const transfer = (cc_param, cc_type) => {

		let donor_rig_filepath = get_cc_match_rig(cc_body, cc_param);

		let cc_json = TypeHelper.JsonParse(wkit.GameFileToJson(wkit.GetFile(donor_rig_filepath, OpenAs.GameFile)));

		Logger.Debug('transfering bones from:  [' + shorten_cc_path(donor_rig_filepath) + ']  with "' + cc_type + '" in the name');

		for ( const [cc_index, b] of cc_json["Data"]["RootChunk"]["boneNames"].entries() ) {

			let s = b.value;

			if (!s.includes(cc_type)) continue;

			let i = json["Data"]["RootChunk"]["boneNames"].findIndex(b => b.value === s);

			if (i == -1) continue;

			json["Data"]["RootChunk"]["boneTransforms"][i] = cc_json["Data"]["RootChunk"]["boneTransforms"][cc_index];

		}

	};

	transfer(cc_params_int.jaw  , "_jaw_" );
	transfer(cc_params_int.ears , "_ear_" );
	transfer(cc_params_int.nose , "_nose_");
	transfer(cc_params_int.mouth, "_mug_" );
	transfer(cc_params_int.eyes , "_eye_" );

	let outpath = npv_head + output_subfolder + cc_body.code + 'skeleton.rig';

	Logger.Success('saving rig to: ' + outpath);
	wkit.SaveToProject( outpath, wkit.JsonToCR2W(TypeHelper.JsonStringify(json)) );

}



let any_files_found = false;

for (let filepath of PROJ_FILES
.filter((fp) => fp.slice(0,fp.lastIndexOf('\\')) === npv_head.slice(0,npv_head.lastIndexOf('\\')) ) // only files in the npv_head folder (without subfolders)
//.filter((file) => file.startsWith( npv_head )) // only files in the npv_head folder (with subfolders)
.filter((fp) => fp.endsWith('.mesh'))
) {
	construct_mesh(filepath);

	any_files_found = true;
}

if (!any_files_found) { Logger.Warning('set the npv_head variable of this script to your npv folder with head meshes. (no meshes found in: ' + npv_head + ' )'); }



for (let cc_body of cc_bodies) {
	// basically check if there are any files in the npv_head folder, with "_pwa_" or "_pma_" in the name
	if (PROJ_FILES
	.filter((fp) => fp.slice(0,fp.lastIndexOf('\\')) === npv_head.slice(0,npv_head.lastIndexOf('\\')) )
	.filter((fp) => fp.endsWith('.mesh'))
	.filter((fp) => /[^\\]*$/.exec(fp)[0].includes(cc_body.code))
	.length == 0 ) { continue; }

	construct_rig(cc_body);

}



}

main();

```

{% endcode %}

* At the top of the script:
  * Set the **npv\_head** variable to the path of your npv's **head folder**.
  * Set the **cc\_params\_input** to your character creator parameters (the same way you did in blender)

> Make sure to replace `\` backslashes with `\\` double backslashes when pasting any paths into scripts.

* Save & **Run the script**. <mark style="color:$info;">(Make sure you have log opened to see when its done.)</mark>

If there are no errors in the logs:

* Move everything out the `#script_output` folder. <mark style="color:$info;">(backup your files, replace them with the new ones)</mark>
* **Re-import** the meshes using the **Import Tool**.

> Re-importing is crucial for allowing WolvenKit to correctly calculate the new bone values.

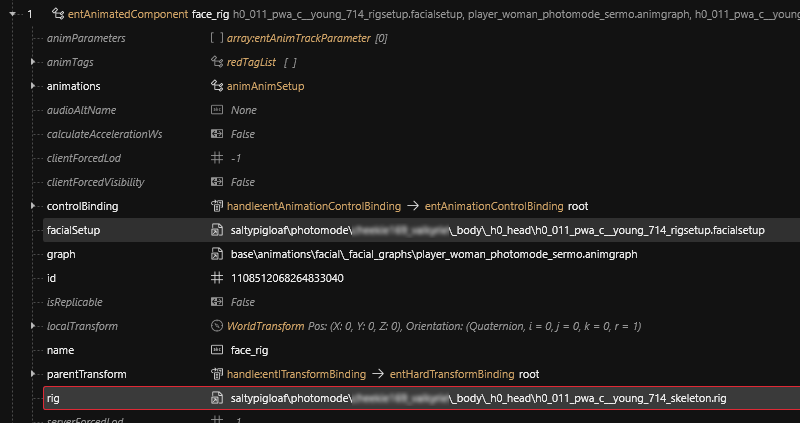

After replacing the skeleton in the mesh, you need to update the **`face_rig`** component:

* Open the `.app` or `.ent` file that contains your NPV’s head setup.
* Locate the **`face_rig`** component.
  * Set **`rig`** to the new `_skeleton.rig` file
* **Done.**

{% hint style="info" %}
If the script didn't work correctly, don't be scared to figure out what the logs are saying.

This code is not complicated and should be easy enough to edit.
{% endhint %}

***

## **Fixing the bones manually:**

#### **The Trade-Off** <a href="#the-trade-off" id="the-trade-off"></a>

> ⚠ **Heads up:** This changes the *entire* head skeleton, not just the eyes.
>
> * **Pro:** Eyes track correctly; no clipping.
> * **Con:** The rest of the head inherits *slight* positional changes from the donor rig.
> * For most NPVs this is worth it.
>
> If you want to avoid this - use the script. Fixing the rig properly manually is too much work.

### **Workflow Overview**

1. Identify donor rig for your NPV’s face/eye shape.
2. Export target mesh to GLB.
3. Copy skeleton data from donor to target in WolvenKit.
4. Re-import target mesh into WolvenKit.
5. Update the face\_rig component

***

### **Step-by-Step Guide**

#### 1. Prepare Files

* Identify your donor mesh, based on the Character Creation chosen for the Eye
  * Navigate to `base\characters\head\player_base_heads\player_{body}_average\`
  * Find the subfolder with the numeric value of your Eye choice. The number will be offset by 1 because the rig 000 is associated with Character Creation choice of 01.

> 📄 **Example:**
>
> If your eye selection was 12, your rig/bones will be found in the 011 folder, either:
>
> * `h0_`**`011`**`_pwa_c__young_714`
> * `h0_`**`011`**`_pma_c__middle_763`

* Import the necessary files into WolvenKit:
  * **Source mesh** (donor head with correct rig, identified above)
  * New **facialsetup** and **rig** files
  * **Target mesh** (NPV head you want to fix)
* Duplicate the target mesh to keep an untouched backup.

> ⚠ **Warning:** Never work directly on your final NPV mesh! Always duplicate for edits.

***

#### 2. Export target mesh to GLB

* Export your target mesh using the Export Tool in WolvenKit.

> ⚠ **Note:** You won't need to edit this GLB directly, but the step of exporting and importing is absolutely necessary.

***

#### 3. Copy Skeleton Data

* Open both both the target and donor meshes in WolvenKit.
* Change the **Editor Mode** to **Advanced** in both
* In the target mesh, delete the following arrays:
  * `"boneNames"`.
  * `"boneRigMatrices"`.
  * `"boneVertexEpsilons"`
  * `"renderResourceBlob/header/bonePositions"`
* In donor mesh, copy each of these arrays, one at a time, and paste them into the target mesh:

***

#### 4. Re-import target mesh into WolvenKit

* Save your changes.
* Using the **Import Tool**, import your target mesh from GLB.

> ⚠ **Important:** This step is crucial for allowing WolvenKit to correctly calculate the new bone values. Without it, your NPVs face will droop and sag.

***

#### **5. Update the `face_rig` Component**

After replacing the skeleton in the mesh, you need to update the **`face_rig`** component so the game points to the correct donor rig and facial setup.

1. In WolvenKit, open the `.app` or `.ent` file that contains your NPV’s head setup.
2. Locate the **`face_rig`** component.
3. Update:
   * **`rig`** → point this to the donor `.rig` file you imported in Step 1.
   * **`facialSetup`** → point this to the donor `.facialsetup` file you imported in Step 1.
4. Leave the **`animGraph`** value *unchanged* — this stays as it is.

<figure><img src="/files/jpg8majb4WU0p8SmART6" alt=""><figcaption></figcaption></figure>

> ⚠ **Important:** If you don’t update both `.rig` and `.facialsetup` to match the donor, the facial bones will not behave correctly in-game.

### **Credits**

* **Original JSON Method:** [xBaebsae](https://xbaebsae.jimdofree.com/cyberpunk-2077-guides/cp2077-transferring-and-expanding-skeletons-in-meshes/)
* @eagull, [mana vortex](mailto:undefined) , and @scorpiontank for their invaluable input
* [Zwei Valerie](mailto:undefined) and [lLorion](mailto:undefined) for trials/testing


---

# Agent Instructions: Querying This Documentation

If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.

Perform an HTTP GET request on the current page URL with the `ask` query parameter:

```
GET https://wiki.redmodding.org/cyberpunk-2077-modding/modding-guides/npcs/fixing-eye-clipping-in-npvs-by-replacing-facial-rigs.md?ask=<question>
```

The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
