Entity Instance Data

This page quickly outlines what Entity Instance Data is, what it is used for and some basic examples

What is it

• Entity Instance Data can be defined for any Entity type node

• It is used to override properties of the entity and its components, on a instance basis

  • This means you can make changes to once specific instance of an entity, without changing all the other ones which use the same .ent

What can it do

• It can change any component's properties, just like you would in WolvenKit

• Often this is used for:

  • Changing component size or offset

  • Changing the mesh a component uses

  • Changing behavior of e.g. Doors and other devices

  • Setting up devices such as elevators and FT points

The sky is the limit, as you can change each components properties

It can be also very helpful for prototyping custom entities, as you get a realtime preview of the changes, for most properties

Basic Example

• You can see it being used in the guides for elevators, FT points and security areas

• You can right-click any property or component to reset it back to default

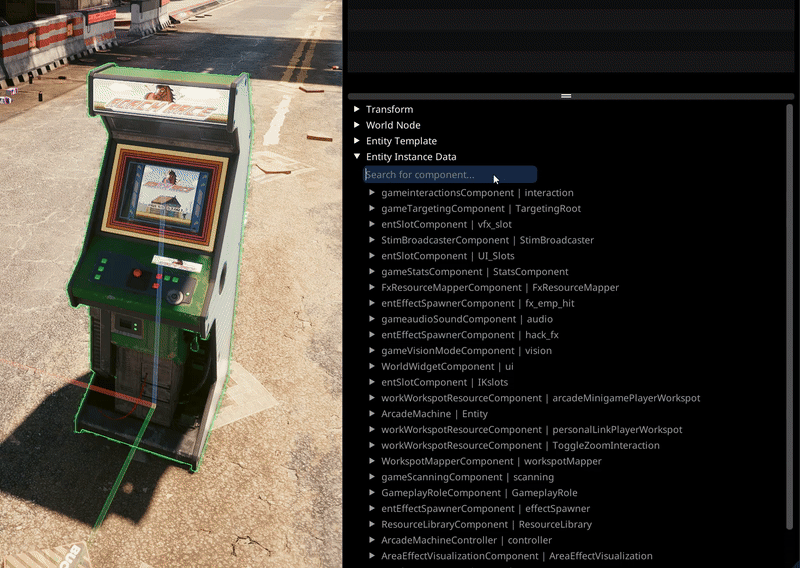

Making a Green and Wide arcade machine

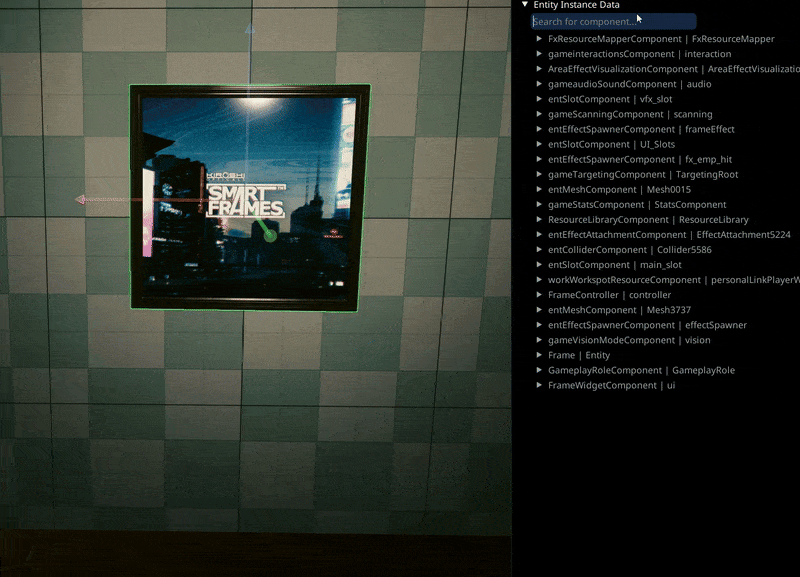

Smartframe Example

• This example will show you how to change the size and aspect ration of a smartframe

• First, spawn any of the smartframes as Entity, e.g. base\gameplay\devices\frames\base\smart_frame_a.ent

• You will need to change the dimensions in three places:

  • Frame mesh component

  • Screen mesh component

  • UI component

• Lets start with the mesh components:

  • The smartframe has two mesh components, find them by searching for mesh under the Entity Instance Data header

  • Expand them, and scroll down to locate the visualScale, then change the size there

• To Adjust the aspect ratio of the UI, find the component named ui

  • Adjust the values under the dimensions header, to have the same ratio as the mesh scales

First change the two mesh sizes, then adjust the UI size
