How to use worldCommunityRegistry and worldCompiledCommunity

This page describes how to use worldCompiledCommunityAreaNode and worldCommunityRegistryNode

This guide explains the theory on how to setup communties, and how they tie into quests

For actually creating communities, it is recommended to instead follow the communities with Object Spawner guide

Summary

Published: Nov 10 by Sergey Last documented update: Dec 4 by Sergey

Wait, this is not what I want!

• If you want to learn about Quests & Scenes, please check the corresponding section.

• If you want to learn about World Editing, please check the corresponding section.

• NodeRefs explained.

Requirements

• ArchiveXL 1.17.0+

Basics

There are two types worldCompiledCommunityAreaNode and worldCompiledCommunityAreaNode_Streamable

The difference between them is only that worldCompiledCommunityAreaNode must be registered in AlwaysLoaded type of .streamingsector

worldCompiledCommunityAreaNode_Streamable can be registered in other types of .streamingsector (exterior/quest/etc)

Theory

Working with worldCompiledCommunityAreaNode and worldCommunityRegistryNode

In general, we are specifying in worldCompiledCommunityAreaNode all our spots where we want to spawn NPCs/etc by its entryName/phase.

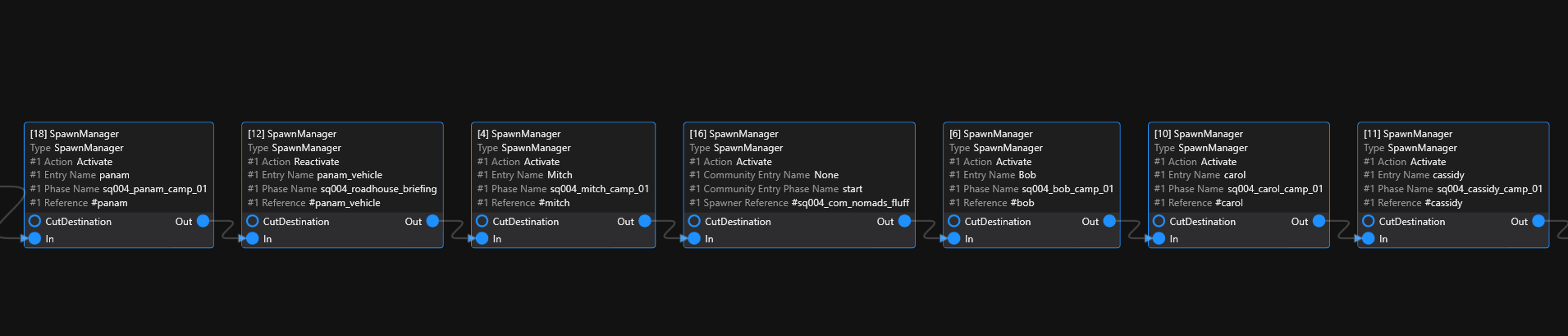

For example in the quest Riders on the Storm CDPR reactivates all needed NPCs by their reference, entry name, and phase name.

Setup your Wkit project.

Create .questphase .streamingblock and .streamingsector files

1. Create archiveXL file and specify your .streamingblock and .questphase files





   we will use .questphase file later

2. Create NodeRefs for worldAiSpotNode and worldCompiledCommunityAreaNode

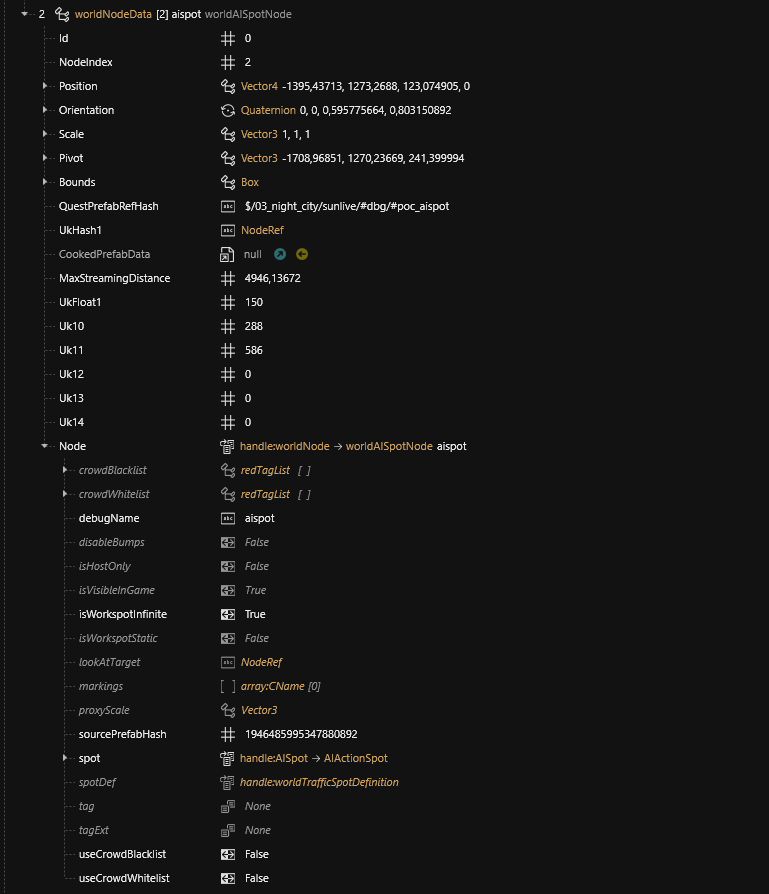

3. Create worldAiSpotNode and its worldNodeData and assign created NodeRefbefore



   In the spot property u need to specify workspot that you want to use

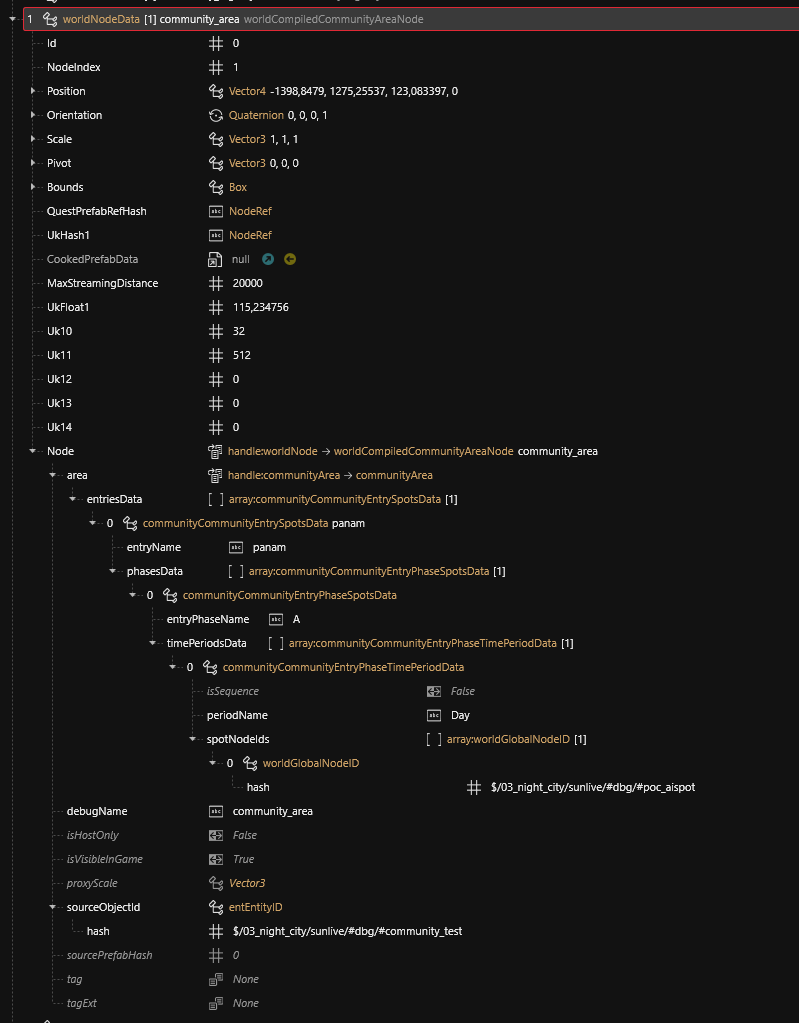

4. Create worldCompiledCommunityAreaNode and its worldNodeData



   Important: - In the Node/area/entriesData we specify an entryName/phaseName/spotId(AiSpoNodeHash) so in the future, we can Activate/Reactivate/Deactivate its entities by these params - sourceObjectId - it should match idof registry item

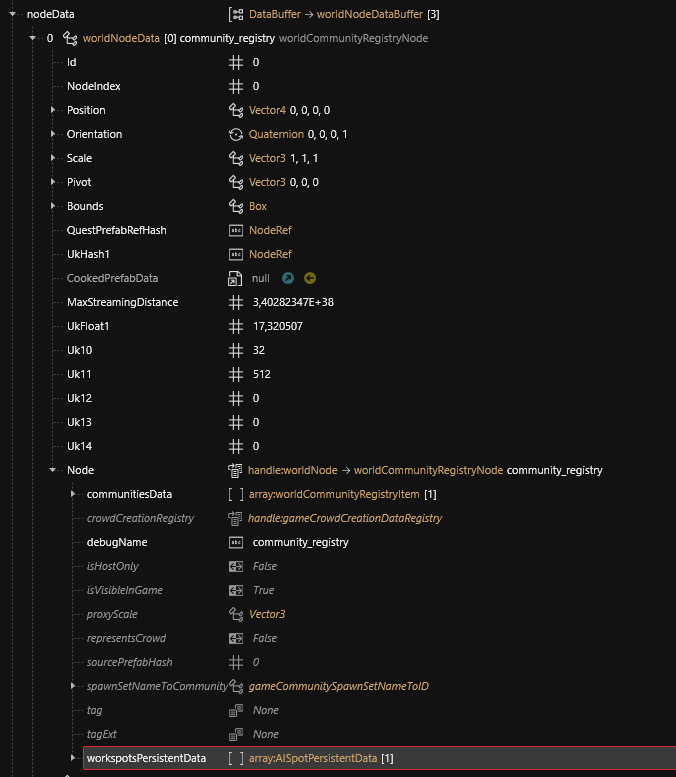

5. Create worldCommunityRegistryNode and its worldNodeData



Details about the registry:

Important:

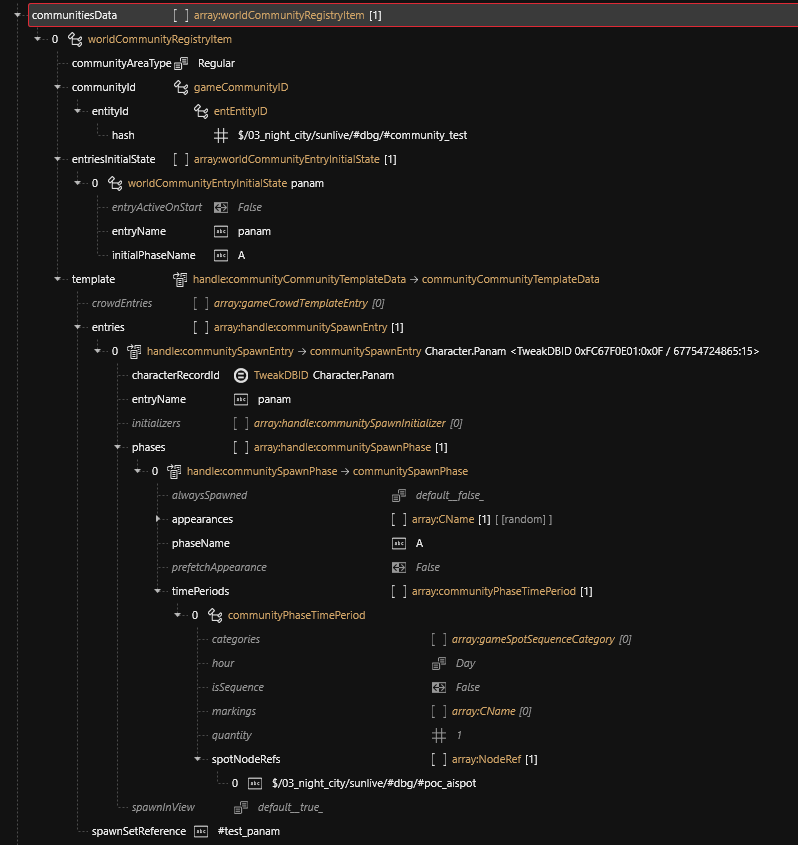

communitiesData - there are we specifying the type of NPC its template, entryName, and all possible phases

In this example, i set Panam with entryName panam and phase A to be able to activate on the spot we created earlier

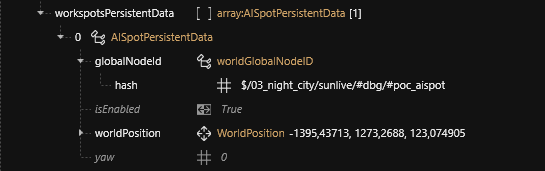

workspotsPersistentData - there we are adding a new spot into the engine's global registry by the hash of our AiSpotNode

Trying to spawn:

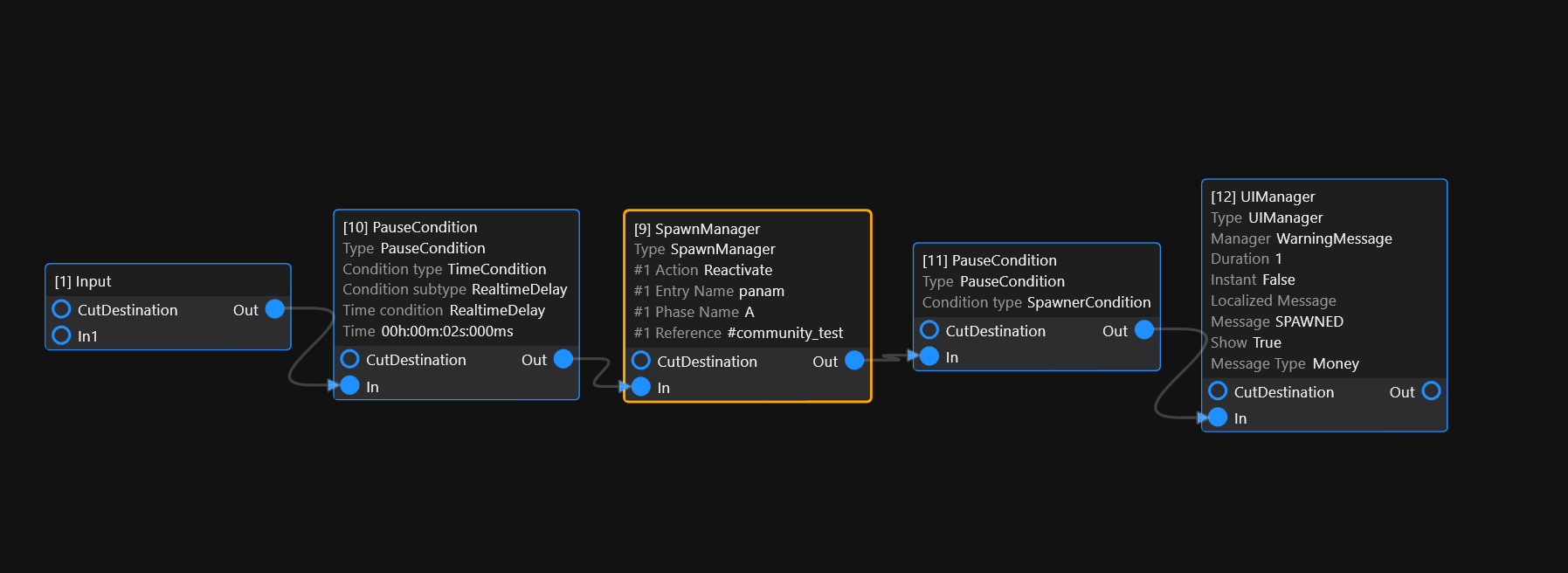

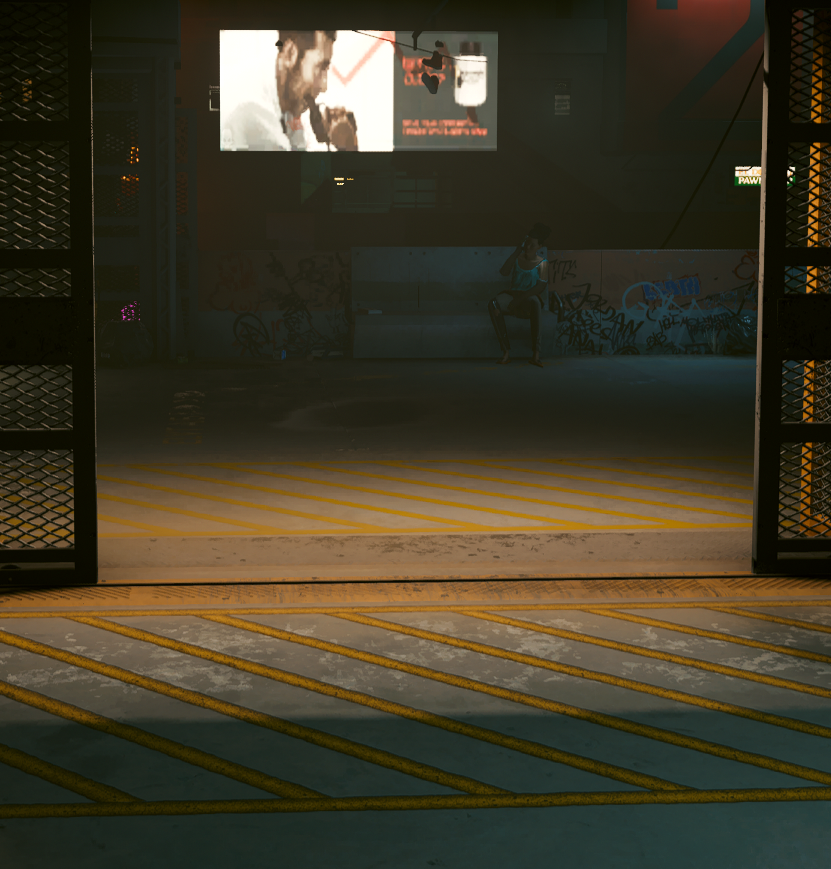

I set the point in front of H10 V's apartment so we should see Panam spawning once we send a command. To do so we need to create a few nodes in our .questphase

In our .xl file, we set that.questphase will trigger whenever we enter the apartment.

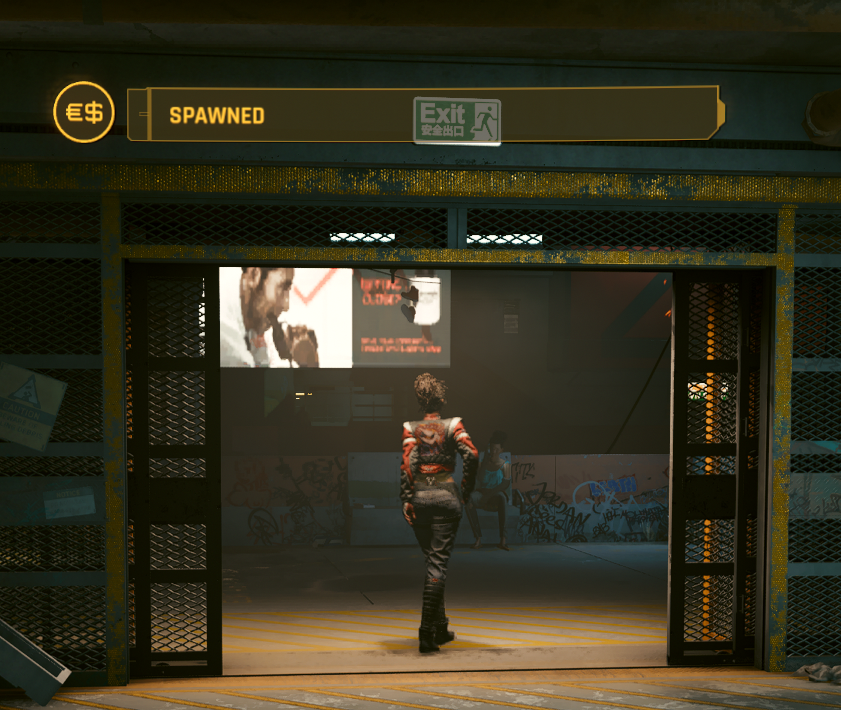

Then you can deactivate/reactive with SpawnManager
