# RHT: The world inspector

## Summary

**Created:** Aug 18 2024 by [mana vortex](https://app.gitbook.com/u/NfZBoxGegfUqB33J9HXuCs6PVaC3 "mention")\
**Last documented edit:** Aug 18 2024 by [mana vortex](https://app.gitbook.com/u/NfZBoxGegfUqB33J9HXuCs6PVaC3 "mention")

This page describes RHT's World Inspector, telliung you what you can do with it.

## World Inspector: Inspect

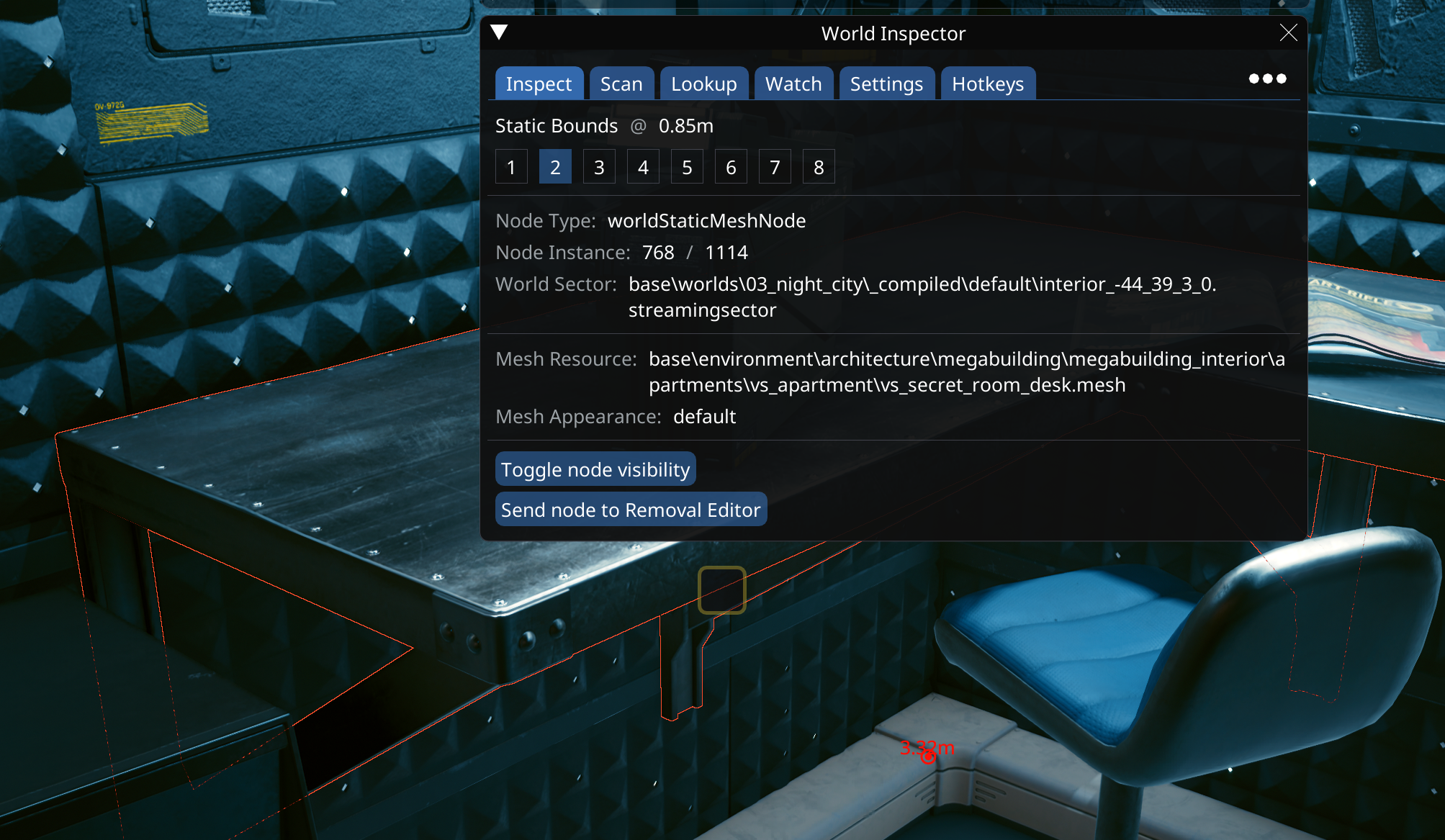

Here, you can inspect world nodes and their properties:

<figure><img src="https://1427525421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F4gzcGtLrr90pVjAWVdTc%2Fuploads%2Fgit-blob-9c5019a48bd55a86b1b33e16012002a40825d67a%2Frht_world_inspector.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1427525421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F4gzcGtLrr90pVjAWVdTc%2Fuploads%2Fgit-blob-0a0a3bc2455d54a2f31fe82f167ff54eb700aa7b%2Fworld_inspector_show_vendor_id.png?alt=media" alt=""><figcaption></figcaption></figure>

## World Inspector: Scan

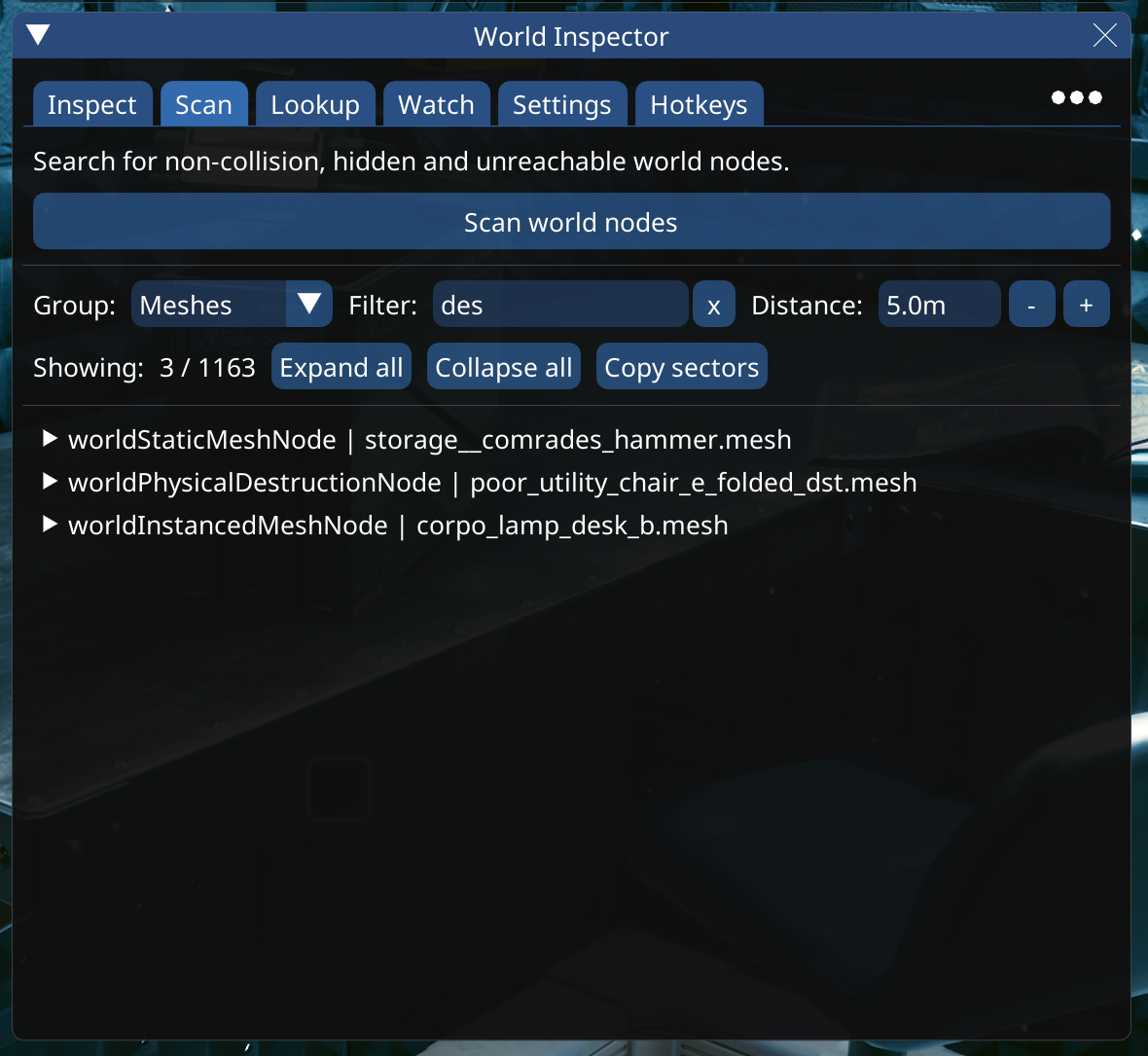

Here, you can scan for any nodes around you:

<figure><img src="https://1427525421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F4gzcGtLrr90pVjAWVdTc%2Fuploads%2Fgit-blob-795acc0d81a886a7879ec3e5ecc7901abb8df79a%2Frht_world_inspector_scan.png?alt=media" alt=""><figcaption></figcaption></figure>

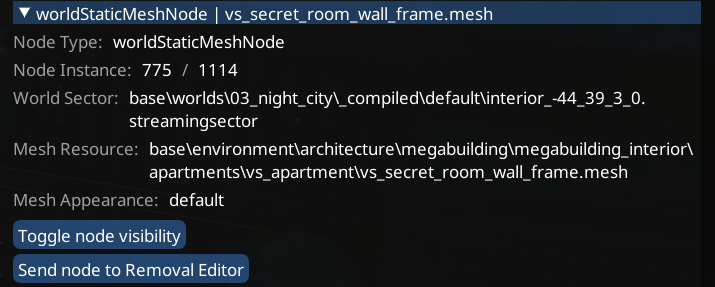

If you expand the node properties, you can simply hide them at run-time, or use the integration with [Removal Editor](https://github.com/justarandomguyintheinternet/CP77_removalEditor) to create permanent preset.&#x20;

{% hint style="info" %}
To copy the data string from a node (eg: Mesh Resource Path), place your mouse pointer over the text string then hold Shift and press the middle mouse button. This will copy the text string to the clipboard.
{% endhint %}

<figure><img src="https://1427525421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F4gzcGtLrr90pVjAWVdTc%2Fuploads%2Fgit-blob-85eaffdc109b8787011d4be1e23f4e4a752074dd%2Frht_toggle_node.png?alt=media" alt=""><figcaption></figcaption></figure>

## World Inspector: Lookup

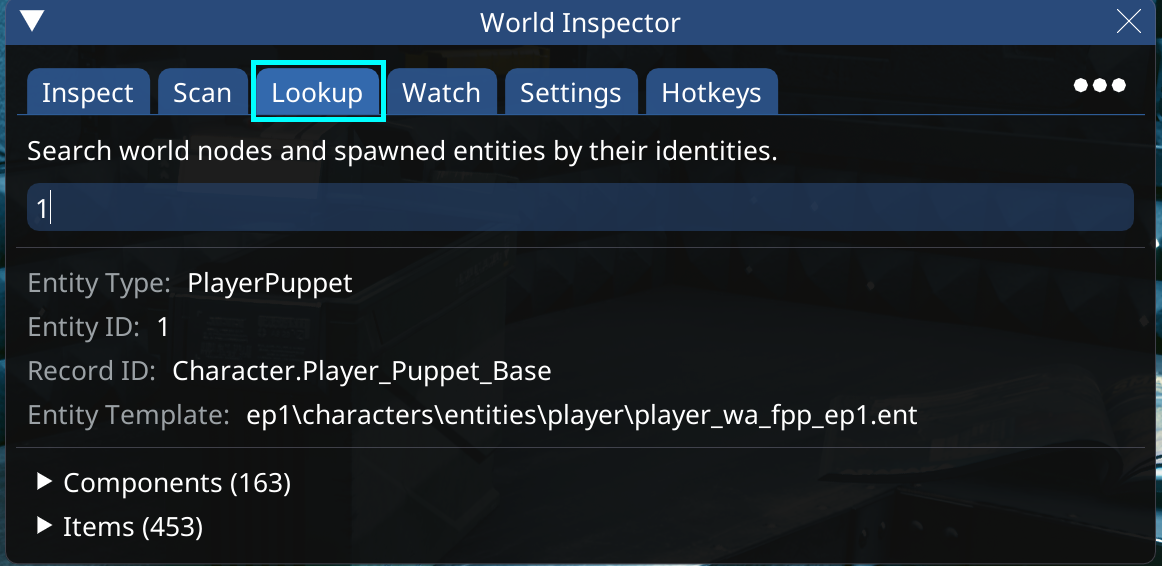

Reverse search of world nodes and spawned entities by their node IDs (e.g. if you're browsing a sector in Wolvenkit)

<figure><img src="https://1427525421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F4gzcGtLrr90pVjAWVdTc%2Fuploads%2Fgit-blob-157552101bc79995538256e5ba569e2fe6ea92db%2Frht_world_inspector_lookup.png?alt=media" alt=""><figcaption></figcaption></figure>

## World Inspector: Watch (the player)

The world inspector's `Watch` tab lets you inspect the player puppet and all of their components at runtime.

{% hint style="info" %}
You can use the information below for AppearanceCreatorMod; check [submeshes-materials-and-chunks](https://wiki.redmodding.org/cyberpunk-2077-modding/for-mod-creators-theory/files-and-what-they-do/file-formats/3d-objects-.mesh-files/submeshes-materials-and-chunks "mention") -> [#acm](https://wiki.redmodding.org/cyberpunk-2077-modding/files-and-what-they-do/file-formats/3d-objects-.mesh-files/submeshes-materials-and-chunks#acm "mention") for details.
{% endhint %}

<figure><img src="https://1427525421-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F4gzcGtLrr90pVjAWVdTc%2Fuploads%2Fgit-blob-3ad7545ebff4e90a0a32257557ae280a7c1f8eee%2Frht_world_inspector_watch.png?alt=media" alt=""><figcaption><p>Invaluable for debugging clothing mods!</p></figcaption></figure>
