Creating Security Areas

This guide covers the process of setting up security areas using Object Spawner

Usage

• Security areas serve two main purposes:

  • Makes the minimap say "Safe/Restricted/Hostile"

  • As an area in which specific player actions alert connected hostiles, as well as providing connectivity between devices and community NPCs (Such that pinging one enemy / device pings all devices and NPCs)

Requirements

Tools

• Object Spawner (v.0.97 or newer)

• ArchiveXL

• Codeware (1.15.0 or newer)

• WolvenKit (With latest version of Object Spawner import script)

Knowledge

• You need to have a basic understanding of:

  • Working with WolvenKit

  • Using Object Spawner (Spawning things and importing into WolvenKit)

Spawning the nodes

• In order to have a functional security area, you need two things:

  • A security system, linked to the security area

  • A security area, defining the area outline and type

Make sure to spawn both as Device(Entity -> Device in Object Spawner)

• Security system:

  • Spawn a base\gameplay\devices\security_systems\security_system.ent

  • Assign a unique NodeRef

• Security area:

  • Spawn a base\gameplay\devices\security_systems\security_area\security_area_1.ent

  • Assign a unique NodeRef

  • Ensure that it has no rotation, so set roll, pitch and yaw to 0

Linking the devices

• Next we need to link the security system to the area

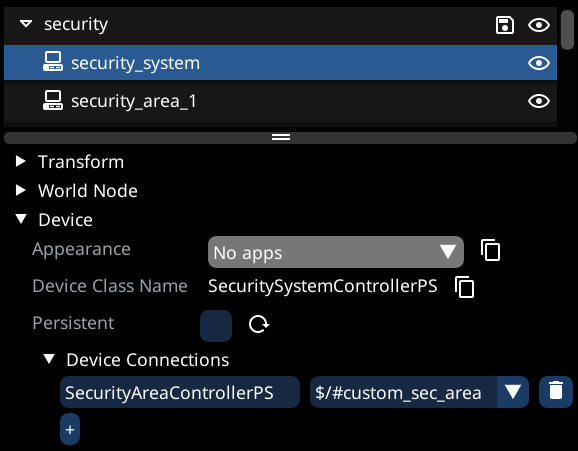

• To do this, we will go to the Device -> Device Connections header of the security system, add a new entry

• Fill the device class name field (On the left), with the device class name of the security area

  • In our case this would be SecurityAreaControllerPS, which can also be found under the device header of the security area

• Select the NodeRef of the security area on the right hand side of the entry

The security system is now linked to our security area (The device connection has the device class name and NodeRef of the security area)

Creating the outline

• Next we want to create the outline of the security area

• In order to do this, setup a Dummy Area, using the guide for setting area outlines (Use a Dummy Area as area type)

Ensure that the Dummy Area is in the exact same position as our security area device

• Next, press the Copy outline to clipboard button, found in the Dummy Area

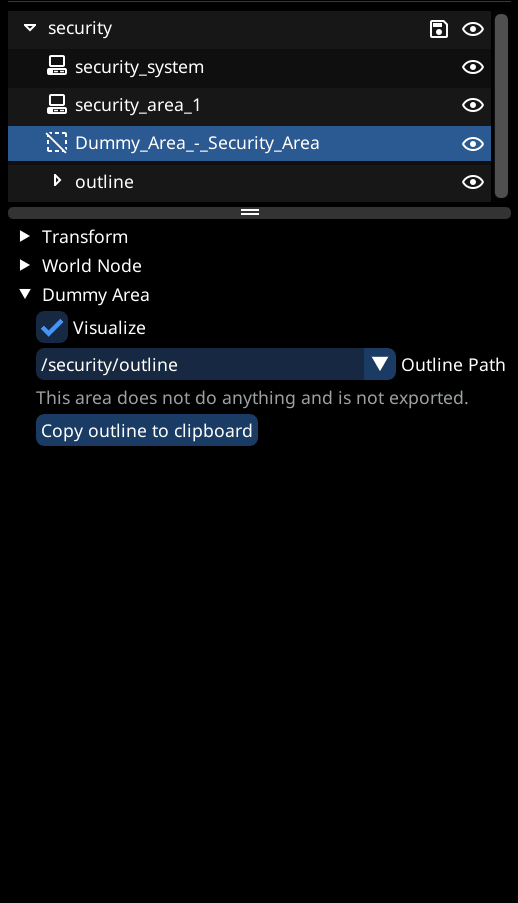

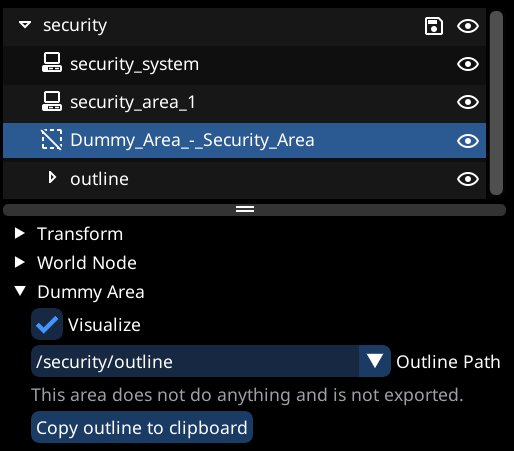

Dummy area outline, linked to an outline group as described in the outlines guide

Setting the outline

• Now, we want our security area device to use our previously defined (And copied to clipboard) area outline

• Open the Entity Instance Data header of the security area

• Locate the area component, and expand it

• Right-click the outline header, and select Paste outline [Number of outline markers]



  How to copy and paste the outline

Setting area type

• By default, the area will be Hostile

• To change this, under the entity instance data header, locate:

  • controller -> persistentState -> securityAreaType

  • There you can select the type of area you want

Recap

• You should now have:

  • A security system and security area, spawned as device

  • Both have unique NodeRefs

  • Security system has a device connection to the security area

  • Dummy outline, copy pasted the outline into the security area

• Now simply export your group from Object Spawner, and import into WKit using the Object Spawner import feature
