Creating Sector Variants

This guide explains how to add variants to your sectors, using Object Spawner

Further information on how sector variants work under the hood, and how to manually work with them can be found on the Switching between sector states page

Usage

• Sector variants allow you to assign different parts of a sector to a variant

• You can then toggle those variants on / off, while the game is running

• This can be used to e.g. offer different variations of a build, within a single mod download, and allow the user to toggle different parts / layers at will

• Unlike the name "Variants" may suggest, you can have multiple ones active at the same time, allowing you to mix and match

Requirements

Tools

• Object Spawner

• ArchiveXL

• Codeware (1.15.0 or newer)

• WolvenKit (With latest version of Object Spawner import script)

Knowledge

• You need to have a basic understanding of:

  • Working with WolvenKit

  • Using Object Spawner (Spawning things and importing into WolvenKit)

General Setup

• Variants are something you should keep in mind during the building process, if you want to use them

• You will be able to assign each group, which sits directly within in main group, to a variant

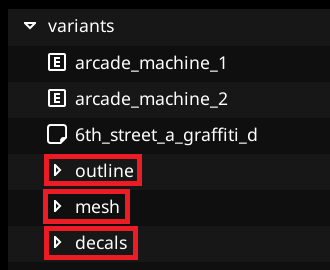

Example of what groups will be assignable

• In the above example, you will be able to assign each of the three groups to a variant

  • All objects placed directly within the root group (The group that you saved and export), will be part of the default variant

Assigning variants

• Once you have added your group(s) to the export, you can start assigning variants

• Variant settings can be found under the same named header (One per group)

• By default, each group will be assigned to the default variant, meaning they will be always active

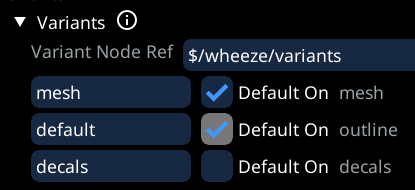

Example of a variants setup for a group, in the export tab

• Variant Node Ref:

  • This MUST be set to some unique NodeRef, in order for the variants to be controllable

• Below you can assign a variant to each group

  • You can assign multiple groups to the same variant

  • Optionally change whether the variant should be active by default

Testing variants

• In order to quickly toggle variants on and off, during development and testing, you can use the following commands in the CET-Console:

Game.GetWorldStateSystem():TogglePrefabVariant(CreateNodeRef("$/yourRefName"), "variantName", true) -- Toggle variant on
Game.GetWorldStateSystem():TogglePrefabVariant(CreateNodeRef("$/yourRefName"), "variantName", false) -- Toggle Variant off

User Configurable Variants

• In order for mod users to quickly and conveniently toggle variants, one could e.g. hook up the above code to some UI

• To make it easier, below there will be a ready to use Native Settings UI based menu, that allows toggling variants

• In order to configure it, simply change the values at the top of the init.lua file:

  • settingsMainName/settingsSubName : Controls the names displayed for the category, in Native Settings UI

  • defaultMutuallyExclusiveVariants: Here you define string selectors for variants which should be mutually exclusive (Only one active at a time)

    • ref: This is the variant node ref

    • displayName: This is a more human-readable string, gets actually shown in the UI

    • currentIndex: This is the default state (Will override what is defined during export)

    • variants: This array contains the variants which should be mutually exclusive, with a display name

  • defaultAdditiveVariants: Here you define simple switches for variants which can be mixed and matched

    • ref: This is the variant node ref

    • variant: The name of the variant, as defined during export

    • displayName: This is a more human-readable string, gets actually shown in the UI

    • defaultState: The default state of the variant (Overrides what is set during export)
