Creating custom Blueprints

A tutorial on creating a custom blueprint to add additional attachmentSlots to an item

Summary

Created: Aug 01 2024 by Berdagon Last documented edit: Aug 01 2024 by Berdagon

This guide will teach you how to create your own blueprint by extending a base game record. At the end, you will have an assault rifle with muzzle, scope, and four mod slots.

Requirements:

A text editor like Notepad++

What is a Blueprint?

To learn more about records and flats, check How to YAML: Tweak modding basics -> Records and -> Flats. For the purpose of this guide, it's enough to say that Records can contain other records and flats, whereas flats can only contain values.

A Blueprint is a record of type gamedataItemBlueprint_Record with the following flat:

Items.GenericShardableCyberwareBlueprint:
  $type: gamedataItemBlueprint_Record
  rootElement: Items.GenericShardableCyberwareBlueprint_inline0

rootElement is a record of type gamedataItemBlueprintElement_Record. It has the following flats (properties):

Items.GenericShardableCyberwareBlueprint_inline0:
  $type: gamedataItemBlueprintElement_Record
  slot: AttachmentSlots.GenericItemRoot
  childElements:
    - Items.GenericShardableCyberwareBlueprint_inline1

slot is a record of type gamedataAttachmentSlot_Record.

They have the following properties:

childElements is an array of records of type gamedataItemBlueprintElement_Record

prereqID is a record of type gamedataStatPrereq_Record

A blueprint can have 1 rootElement and each of the gamedataItemBlueprintElement_Record can have multiple other gamedataItemBlueprintElement_Record as children

In order for a slot to be usable in the game its parent slot has to already be filled.

How to make a custom Blueprint?

We are going to make a custom blueprint that has 4 weapon mod slots for the Power Assault Rifles

At first make a new .yaml file and name it Items.Base_Power_AR_SMG_LMG_4Mod_Blueprint (the naming is not important and you can name it whatever you want).

Inside the yaml file, put the following content:

Items.Base_Power_AR_SMG_LMG_4Mod_Blueprint:
  $type: gamedataItemBlueprint_Record
  rootElement: Items.Base_Power_AR_SMG_LMG_4Mod_Blueprint_rootElement

Now we need to define Items.Base_Power_AR_SMG_LMG_4Mod_Blueprint_rootElement we are going to use Items.Base_Power_AR_SMG_LMG_Blueprint_inline0 as a base for our rootElement and append two records for our 2 new Mod slots

Items.Base_Power_AR_SMG_LMG_4Mod_Blueprint_rootElement:
  $base: Items.Base_Power_AR_SMG_LMG_Blueprint_inline0
  childElements:
    - !append-once Items.Power_AR_SMG_LMG_WeaponMod3Element
    - !append-once Items.Power_AR_SMG_LMG_WeaponMod4Element

The 2 new Weapon Mod Element records should be of type gamedataItemBlueprintElement_Record

Items.Power_AR_SMG_LMG_WeaponMod3Element:
  $type: gamedataItemBlueprintElement_Record
  prereqID: Items.EpicItemBlueprintElement_inline0
  slot: AttachmentSlots.Power_AR_SMG_LMG_WeaponMod3
  childElements: []

Items.Power_AR_SMG_LMG_WeaponMod4Element:
  $type: gamedataItemBlueprintElement_Record
  prereqID: Items.LegendaryItemBlueprintElement_inline0
  slot: AttachmentSlots.Power_AR_SMG_LMG_WeaponMod4
  childElements: []

Here we have to create 2 new prereqIDs

Items.EpicItemBlueprintElement_inline0:
  $base: Items.RareItemBlueprintElement_inline0
  valueToCheck: 3

Items.LegendaryItemBlueprintElement_inline0:
  $base: Items.RareItemBlueprintElement_inline0
  valueToCheck: 4

Adding attachment slots

And we will need to create our custom AttachmentSlots

You can check the Cheat Sheet: Attachment Slots, or look up Creating custom AttachmentSlots to make your own.

We are going to create 2 attachmentSlots named

• AttachmentSlots.Power_AR_SMG_LMG_WeaponMod3

AttachmentSlots.Power_AR_SMG_LMG_WeaponMod3:
  $type: gamedataAttachmentSlot_Record
  entitySlotName: Power_AR_SMG_LMG_WeaponMod3
  localizedName: LocKey#43771
  customOffset: {x: 0, y: 0, z: 0}
  tagsForActiveItemCycling: []
  unlockedBy: Epic

• AttachmentSlots.Power_AR_SMG_LMG_WeaponMod4

AttachmentSlots.Power_AR_SMG_LMG_WeaponMod4:
  $type: gamedataAttachmentSlot_Record
  entitySlotName: Power_AR_SMG_LMG_WeaponMod4
  localizedName: LocKey#43771
  customOffset: {x: 0, y: 0, z: 0}
  tagsForActiveItemCycling: []
  unlockedBy: Legendary

Now that all the necessary records are defined, we are going to add this Blueprint to the Weapon record

Items.Base_Power_Assault_Rifle:
  blueprint: Items.Base_Power_AR_SMG_LMG_4Mod_Blueprint

Items.Base_Power_Assault_Rifle as its name suggest is the base for power assault rifles so by doing this all the power assault rifles should now have this blueprint

The tweak part of making the blueprint is now over and we can jump in the game and check the records

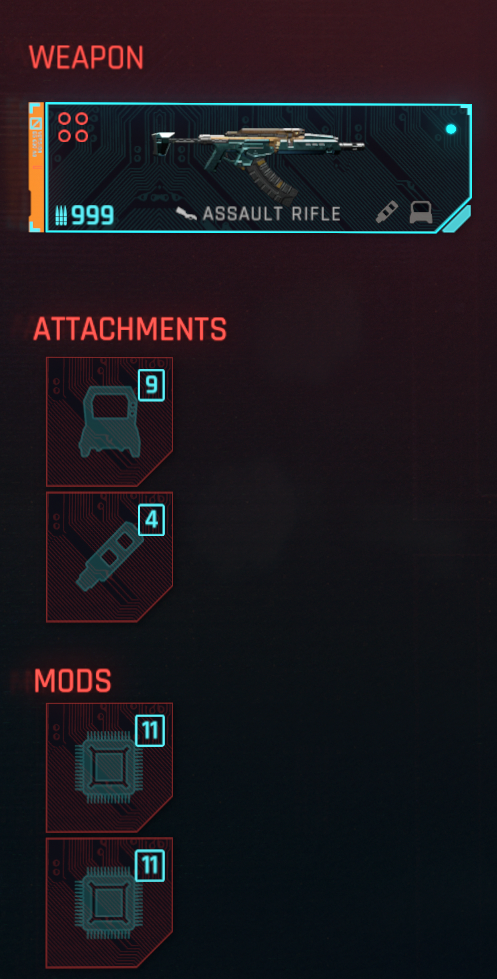

We are going to use Preset_Ajax_Pimp as you can see the modSlots are not being shown in the game

For this, we are going to need to do some scripting lets create a new .reds file in the script folder and name it AR_SMG_LMG_4Slot.reds

We need to wrap multiple functions to make this work, so at first we are going to add a function that has our AttachmentSlots in it

@addMethod(InventoryDataManagerV2)
public static func GetExtraWeaponModSlots()-> array<TweakDBID>
{
  return [
    t"AttachmentSlots.Power_AR_SMG_LMG_WeaponMod3",
    t"AttachmentSlots.Power_AR_SMG_LMG_WeaponMod4"
  ];
}

And another function that checks for these slots

@addMethod(UIItemsHelper)
public static func IsExtraWeaponModSlot(slotID: TweakDBID)->Bool
{
    let modSlots = InventoryDataManagerV2.GetExtraWeaponModSlots();

    if(ArrayContains(modSlots,slotID))
    {
        return true;
    }
    return false;
}

Now we wrap these 3 functions and add our slots to their return value

@wrapMethod(InventoryDataManagerV2)
public final static func GetAttachmentSlotsForInventory() -> array<TweakDBID> {
  let slots = wrappedMethod();
  let modSlots = InventoryDataManagerV2.GetExtraWeaponModSlots();
  for slot in modSlots{
    ArrayPush(slots,slot);
  }
  return slots;
}

@wrapMethod(UIInventoryItemModsStaticData)
public final static func GetAttachmentSlots(itemType: gamedataItemType) -> array<TweakDBID> {
  let slots = wrappedMethod(itemType);
  let modSlots = InventoryDataManagerV2.GetExtraWeaponModSlots();
  switch itemType {
    case gamedataItemType.Wea_AssaultRifle:
    case gamedataItemType.Wea_Handgun:
    case gamedataItemType.Wea_SubmachineGun:
    case gamedataItemType.Wea_SniperRifle:
    case gamedataItemType.Wea_ShotgunDual:
    case gamedataItemType.Wea_Shotgun:
    case gamedataItemType.Wea_Rifle:
    case gamedataItemType.Wea_Revolver:
    case gamedataItemType.Wea_PrecisionRifle:
    case gamedataItemType.Wea_LightMachineGun:
    case gamedataItemType.Wea_HeavyMachineGun:
      for slot in modSlots{
        ArrayPush(slots,slot);

      }
  }
  return slots;
}

@wrapMethod(RPGManager)
public final static func GetModsSlotIDs(type: gamedataItemType) -> array<TweakDBID> {
  let slots = wrappedMethod(type);
  let modSlots = InventoryDataManagerV2.GetExtraWeaponModSlots();
  switch type {
    case gamedataItemType.Wea_LightMachineGun:
    case gamedataItemType.Wea_SubmachineGun:
    case gamedataItemType.Wea_Rifle:
    case gamedataItemType.Wea_AssaultRifle:
    for slot in modSlots{
      ArrayPush(slots,slot);

    }
  }
  return slots;
}

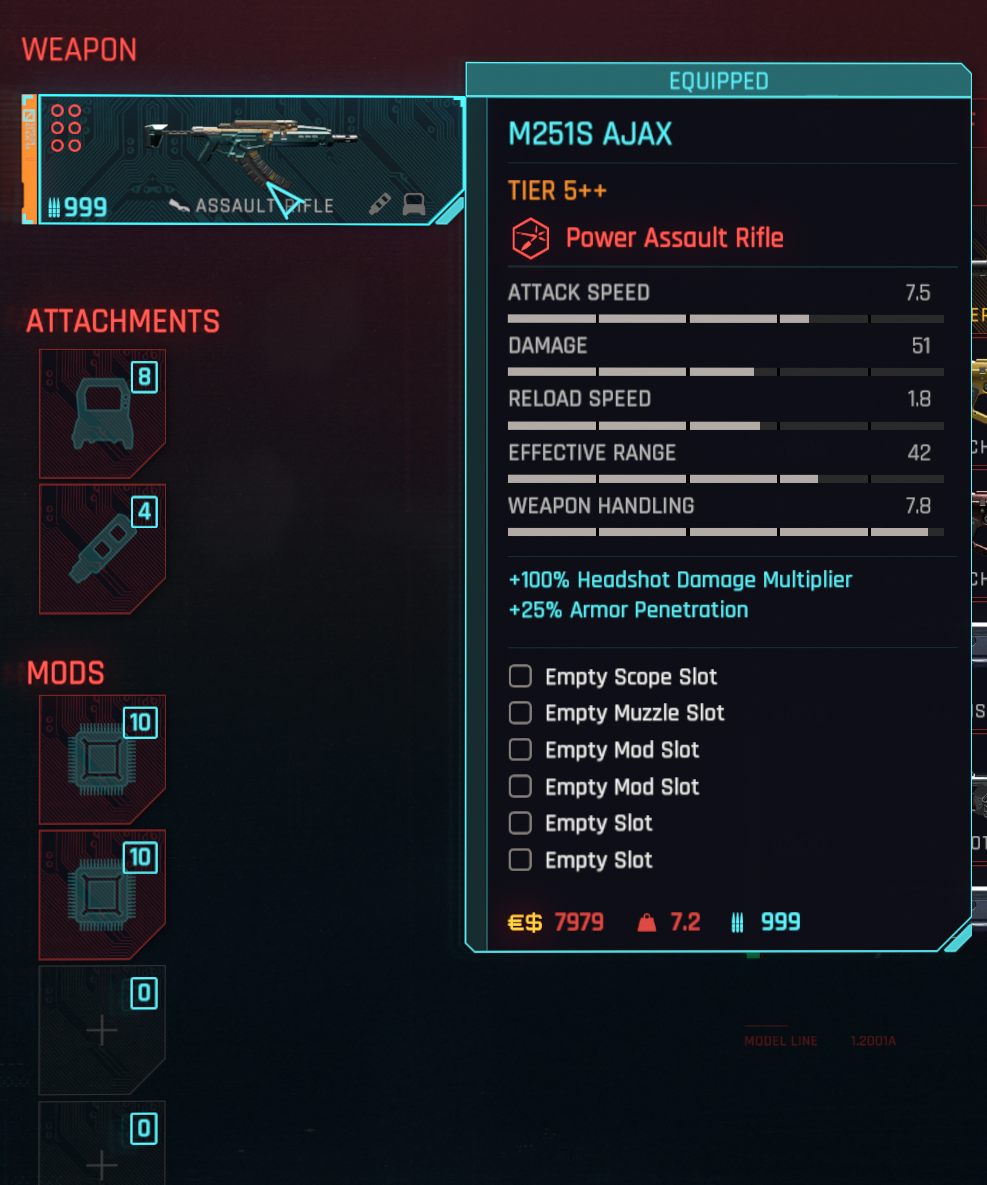

If we check the game now we can see that our slots are added but they are not shown correctly

We need to fix the slot Icons the tooltip names and the slot name

For the icons we wrap these 2 methods you can also use custom icon paths

@wrapMethod(UIItemsHelper)
public final static func GetSlotShadowIcon(slotID: TweakDBID, itemType: gamedataItemType, equipmentArea: gamedataEquipmentArea) -> CName {
  if(UIItemsHelper.IsExtraWeaponModSlot(slotID))
  {
    return n"UIIcon.ItemShadow_Mod";
  }
  return wrappedMethod(slotID, itemType, equipmentArea);
}

@wrapMethod(UIItemsHelper)
public final static func GetLootingShadowIcon(slotID: TweakDBID, itemType: gamedataItemType, equipmentArea: gamedataEquipmentArea) -> CName {
  if(UIItemsHelper.IsExtraWeaponModSlot(slotID))
  {
    return n"UIIcon.LootingShadow_Mod";
  }
  return wrappedMethod(slotID, itemType, equipmentArea);
}

For the tooltip names we are going to wrap this method

@wrapMethod(UIItemsHelper)
public final static func GetEmptySlotName(slotId: TweakDBID) -> String {

    if(UIItemsHelper.IsExtraWeaponModSlot(slotId))
    {
        return "UI-Labels-EmptyModSlot";
    }

    return wrappedMethod(slotId);
}

And for slot name

@wrapMethod(UIItemsHelper)
public final static func GetSlotName(slotID: TweakDBID, itemType: gamedataItemType, equipmentArea: gamedataEquipmentArea) -> String {
    if(UIItemsHelper.IsExtraWeaponModSlot(slotID))
    {
        return "Gameplay-Items-Item Type-Prt_Mod";
    }

    return wrappedMethod(slotID, itemType, equipmentArea);
}

Now the UI is almost complete now we have to register these 2 slots to all the mods that can be equipped on the other 2

Items.AR_SMG_LMG_Mod:
  placementSlots:
    - !append-once AttachmentSlots.Power_AR_SMG_LMG_WeaponMod3
    - !append-once AttachmentSlots.Power_AR_SMG_LMG_WeaponMod4

Items.PowerWeaponMod:
  placementSlots:
    - !append-once AttachmentSlots.Power_AR_SMG_LMG_WeaponMod3
    - !append-once AttachmentSlots.Power_AR_SMG_LMG_WeaponMod4

Items.RangedWeaponMod:
  placementSlots:
    - !append-once AttachmentSlots.Power_AR_SMG_LMG_WeaponMod3
    - !append-once AttachmentSlots.Power_AR_SMG_LMG_WeaponMod4

Items.Mod:
  placementSlots:
    - !append-once AttachmentSlots.Power_AR_SMG_LMG_WeaponMod3
    - !append-once AttachmentSlots.Power_AR_SMG_LMG_WeaponMod4

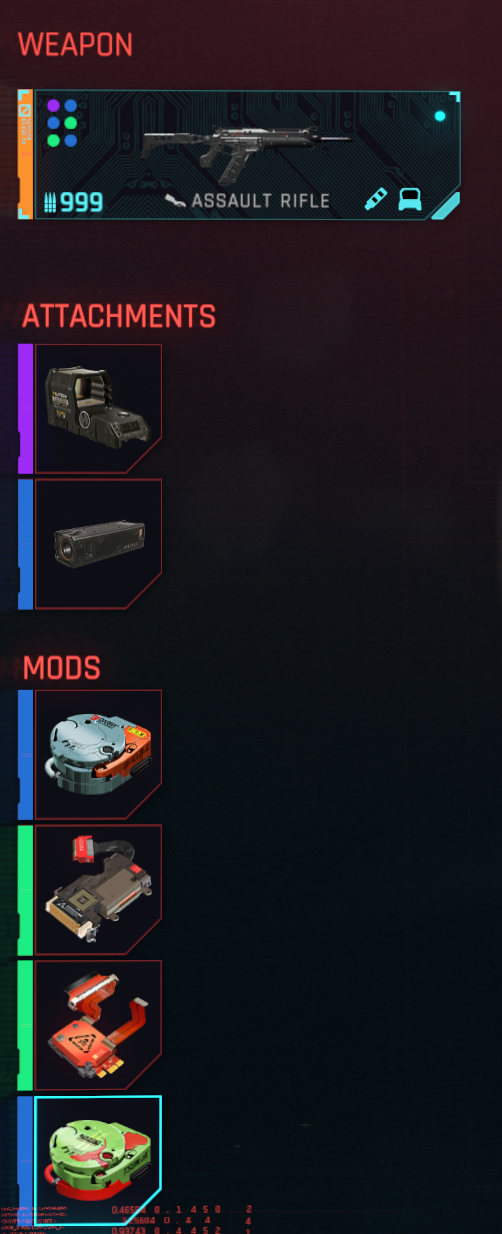

And now its done all of our power assault rifles now have 4 mod slots
