MLSETUP Builder

Summary

Published: ??? by mana vortex Last documented update: Dec 20 2024 by mana vortex

This page will teach you how to download and configure MLSetupBuilder, the tool of choice to edit multilayered materials in Cyberpunk.

At the bottom of the page, you will find Video Guides. Keep in mind that they are outdated.

Wait, that's not what I want!

• To learn more about Multilayered: Cyberpunk's supershader, check the link

• To create your own mlmask, check Textures: Custom .mlmask

• To create your own normal map, check Self-made normal maps

Introduction: What is MLSB?

MLSetupBuilder (commonly referred to as "MLSB") is a Cyberpunk 2077 modding tool to comfortably edit MLSetup files, developed and maintained by Neurolinked.

Releases · Neurolinked/MlsetupBuilderGitHub

There is a dedicated channel on the Redmodding Discord and a thread on the Cyberpunk 2077 Modding Discord Server, where you can find a chat history full of (yet) undocumented features, along with previews and videos of the most recent development versions.

Installation

For integration with Wolvenkit, install MLSB as a plugin:

1. Click on "Home" in Wolvenkit's title bar

2. Select "Plugins" in the left sidebar

3. If MLSB is installed, you'll see an "Update" button, otherwise, it will say "Install". Do that.

We will now launch MLSB and do the initial setup.

1. In Wolvenkit's Plugin view, click "Open", this will open a Windows Explorer with the install folder (Cyberpunk 2077\tools\neurolinked\mlsetupbuilder)

2. Navigate to the folder with the higest version (at the time of this guide, that is MlsetupBuilder-1.6.8-Beta6)

3. Start MlsetupBuilder.exe

4. Optional: You can pin that file to your start menu or create a shortcut if you want to launch MLSB directly.

5. Now, complete theConfiguration section. Don't worry, it's not hard!

Usage

Here's how (or scroll down for the screenshot):

1. In the project explorer under Wolvenkit's archive folder, right-click on am mlsetup file This folder will only be visible in the "source" or "archive" tab of your project explorer

2. Select "Convert to JSON"

3. This will generate an mlsetup.json file in your project's raw folder. This folder will only be visible in the "source" or "raw" tab of your project explorer

4. Right-click on the newly created mlsetup.json file

5. Select "Open in MLSetupBuilder"

Using MLSB

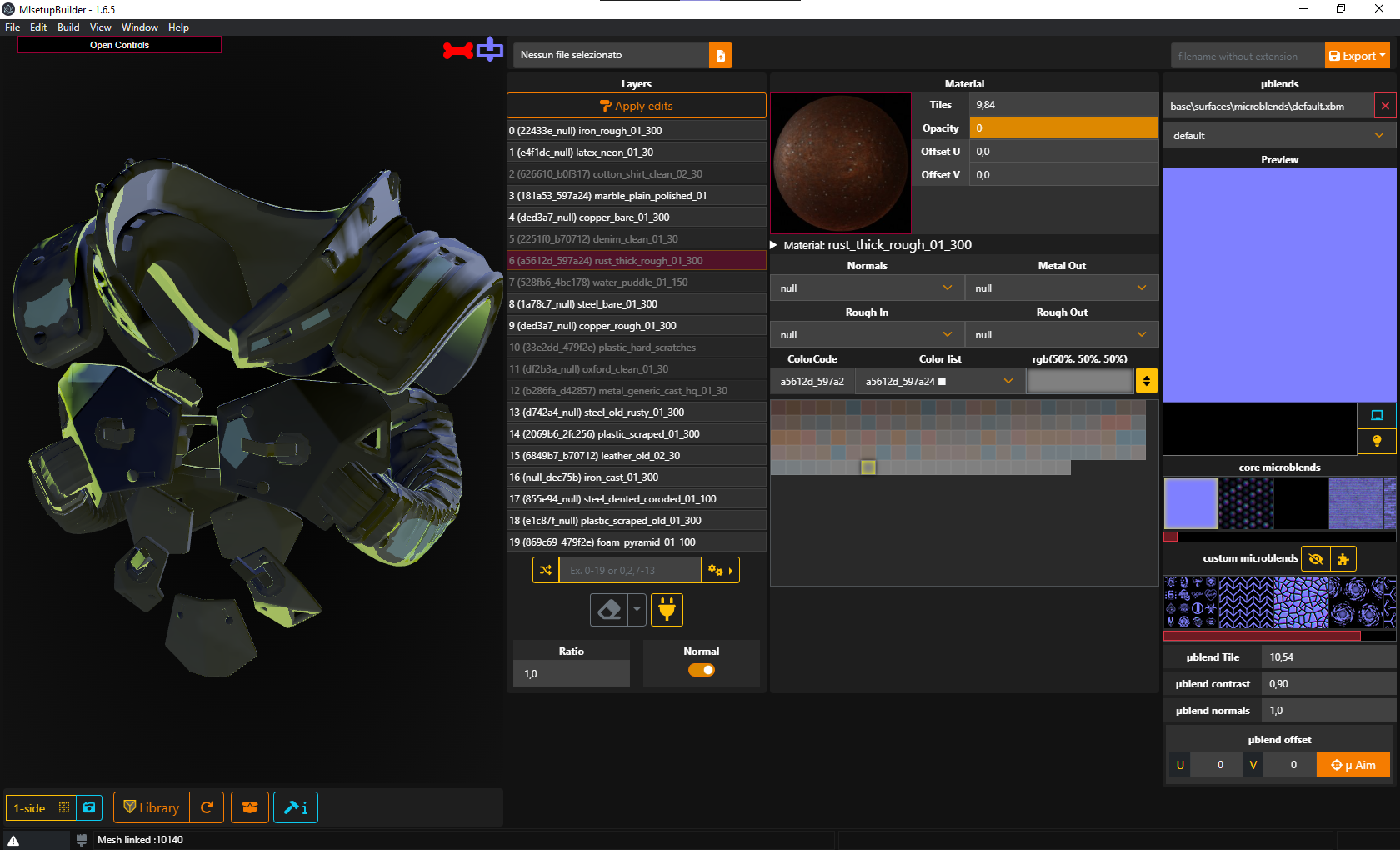

As of Version 1.6.7, this is what you will see now:

Start by importing the file from the preview. That will populate the Layer Config box with the MLSetup that you just loaded.

The preview was hiding an empty 3d viewport. To use that, you will need to configure MLSB first, but you can already click through the individual layers and assign material properties (such as roughness, normal strength, base material and colour) from the "Material Properties" panel.

Once you're done:

• select File -> Export

• overwrite the original mlsetup.json

• switch back to Wolvenkit

• in the "raw" folder, right-click on your file

• select "Import/Convert from JSON"

Congratulations — you now have an .mlsetup! If you pack your mod and launch the game, you should now see your changes.

Functions

There are 3 important functions to note:

1. Materials: this manages the tiles, opacity, offset, and roughness of the texture.

1. Color: this manages color and luminosity of the texture.

1. µblend: this manages the pattern and acts as a secondary, tiled normal map. Additionally, the contrast value can be used to block out parts of the layer to create patterns.

Note

Layers

Each and every layer is attached to its own Multilayer layer when converted from .json to .mlsetup. When adding new layers, ensure designating intended functions for each layer as part of the larger Multilayer inside WolvenKit.

About That 3d Viewport

This is where you can load models from the game for a direct preview which layer will affect which parts: simply click on the "Library" button.

MLSB Library

Here, you can either browse to your model directly, or use text search:

After selecting a model, you can close the library browser again. Now selecting a layer will show you directly which parts of the mesh it corresponds to.

That's it! Happy recoloring!

Other Tools inside MLSB

Inside MLSB there are some other tools, the most important one is the Material Composer.

From this window you can import and export .Material.json files ( these files are exported by Wolvenkit with the WithMaterial option). You can edit the materials parameters, adding material or removing them from the material file. Material templates found in the .Material.json file can be put in the Library and then used later for another edit of materials of a completely different mesh. You can duplicate entries just changing the name of the material and putting them in the buffer again (that's what i did to have 10 different material colors that comes for the glass material of the Kendachi Monokatana mod). Material Composer will also display all the material parameters that comes with the material template (materials baked by the CDPR system have their parameters hidden if they were left as default before the baking of the release).

Configuration

When you start MLSB the first time, it will yell at you that it is not configured correctly.

1. Click No (You'll regret it), because we need to download the CLI first.

Downloading the right CLI

As of 1.6.8, MLSB needs to use a certain version of the Wolvenkit Command Line Interface. Fortunately, it can download it for you:

1. Click on Help

2. Click on Download Wolvenkit.CLI

3. Save the file in your download folder

4. Extract the files to a folder of your choice (for example C:\Cyberpunk2077Mod\MLSB_WolvenKit.CLI)

Now we can configure it.

MLSB: Settings

1. Click File

2. Click Preferences

3. You will now see the settings dialogue:

• Game folder is The Cyberpunk 2077 Game Directory

• Uncook folder / Depot is the folder you have configured in Wolvenkit's Settings

• Wolvenkit-CLI.exe is the one you just downloaded

Building the depot

1. Open the menu "Build" and select "Repository" to uncook the archives:

1. Pick what you want to uncook. Especially the environments can take over an hour, so we're only doing the essentials here:

1. Click "Uncook".

2. Wait. Do not interact with the program in any way until the process has finished - especially interacting with the console might just freeze up the entire windows cmd process. This is not MLSB's fault, but due to a Windows standard implementation. There can be a bunch of errors, ignore them.

1. When the process is complete, close the Depot Generator window.

2. Optional: if you can't see any changes, press Ctrl+R to relaod MLSB.

Building the Microblend Depot

1. Repeat Step 1 from Building the depot, but select Microblends this time

2. In the bottom left corner, hit "Start"

3. Wait.

4. When the process is complete, close the Depot Generator window.

5. Optional: if you can't see any changes, press Ctrl+R to relaod MLSB.

That's it, you're done now and can use the 3d viewport!

Troubleshooting

Generic troubleshooting

Close MLSB, then open %APPDATA%\Mlsetupbuilder\config.json in a text editor and decrement the version by one (e.g. 1.6.8 => 1.6.7). This will force MLSB to re-check its settings.

Alternatively, you can also delete the file and reconfigure.

Generating microblends: [ 0: Error ] - Please fill in an output path

For MLSB <= 1.6.7, you have to use the exact CLI version you find under Help -> Download Wolvenkit.CLI

There's an exception when generating my depot!

Does the progress bar still move? If yes, then you're good - ignore this.

If not, you haven't left your fingers off MLSB and need to start over. Click "Uncook", then go afk until it's done.

If that doesn't help either, it's worth trying Wolvenkit Console's latest Nightly.
